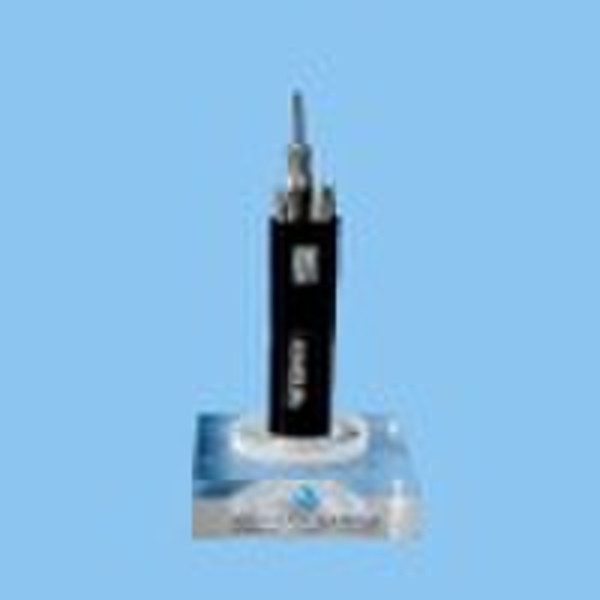

Aerial Bundle Cable

ABC cable primarily used for overhead service applications such as street lighting. Outdoor lighting, and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crossliked polyethylene(XLPE) insulated conductors. Code world AWG or kcmil Bare neutral Messenger Phase Conductor weight (km/kg) Allowabile Ampactaition(A) ACSR Rated Strengthils AAC Insulation thickness Number Dia Mm Number Dia Mm XLPE PE Pekingese Collie Dachshund Spariel Doberman Malemute 1*6AWG+1*6AWG 1*8AWG+1*8AWG 1*4AWG+1*4AWG 1*4AWG+1*4AWG 1*2AWG+1*2AWG 1*1/0AWG+1*1/0AWG 7 7 7 7 7 7 1.56 1.56 1.96 1.96 2.47 3.12 563 563 881 881 1350 1990 1 7 1 7 7 19 4.11 1.58 5.19 1.96 2.47 1.89 1.14 1.14 1.14 1.14 1.14 1.52 92 94 139 141 216 347 85 85 115 115 150 205 70 70 90 90 120 160Code world AWG or kcmil Bare noutral Messenger Phase Conductor weight (km/kg) Allowabile Ampactaition(A) ACSR Tensile strength AAC Insulation thickness Number Dia Mm Number Dia Mm Number Dia Mm XLPE PE Setter Shepherd Eskimo Temier Chew Bull 1*6AWG+1*6AWG 1*8AWG+1*8AWG 1*4AWG+1*4AWG 1*4AWG+1*4AWG 1*2AWG+1*2AWG 1*1/0AWG+1*1/0AWG 1 1 1 1 1 1 1.68 1.68 2.12 2.12 2.67 3.37 6 6 6 6 6 6 1.68 1.68 2.12 2.12 2.67 3.37 1190 1190 1860 1860 2850 4380 1 7 1 7 7 19 4.11 1.58 5.19 1.96 2.47 1.89 1.14 1.14 1.14 1.14 1.14 1.52 111 113 171 173 266 427 85 85 115 115 150 205 70 70 90 90 120 160Code world AWG or kcmil Bare neutral MessengerPhase Conductor weight (km/kg) Allowabile Ampactaition(A) ACSR Tensile strength AAC Insulation thickness Number Dia Mm Number Dia Mm XLPE PE Chihuahua Visla Harrier Whippet Schnauzer Heeler 1*6AWG+1*30.58 1*8AWG+1*30.58 1*4AWG+1*48.69 1*4AWG+1*48.69 1*2AWG+1*77.47 1*1/0AWG+1*123.3 7 7 7 7 7 7 1.68 1.68 2.12 2.12 2.67 3.37 1110 1110 1760 1760 2800 44601 7 1 7 7 19 4.11 1.58 5.19 1.96 2.47 1.89 1.14 1.14 1.14 1.14 1.14 1.52 98 100 149 151 231 372 85 85 115 115 150 205 70 70 90 90 120 160
