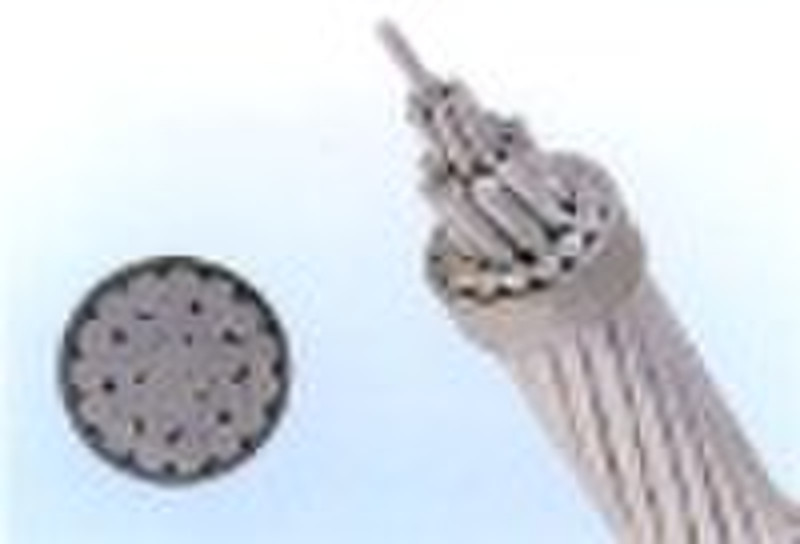

all aluminum alloy conductor

AAAC (all aluminum alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum.being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;having lower breaking loads than the latter,their use becomes particularly favourable when ice and win loadings are low.We can supply this conductor according to different recognized standards,such asBS EN50182,IEC61089,ASTM B399DIN 48, customer special specification also can be satisfied. The data sheets below show the most common standards,British standard and IEC standard. IEC Sizes IEC 61089 Code Number Stranding&wire diameter Approx Overall diameter Nominal area Approx. Weight Breaking Load DC Resistance at 20 mm mm mm2 Kg/km KN Ohm/km 16 25 40 63 100 125 160 200 250 315 400 450 500 560 630 710 800 900 1000 1120 1250 7/1.83 7/2.29 7/2.89 7/3.63 19/2.78 19/3.10 19/3.51 19/3.93 19/4.39 37/3.53 37/3.98 37/4.22 37/4.45 61/3.67 61/3.89 61/4.13 61/4.38 91/3.81 91/4.01 91/4.25 91/4.49 5.49 6.86 8.68 10.9 13.9 15.5 17.6 19.6 22.0 24.7 27.9 29.6 31.2 33.0 35.0 37.2 39.5 41.8 44.1 46.7 49.4 18.4 28.8 46.0 72.5 115 144 184 230 288 363 460 518 575 645 725 817 921 1036 1151 1289 1439 50.4 78.7 125.9 198.3 316.3 395.4 506.1 632.7 790.8 998.9 1268.4 1426.9 1585.5 1778.4 2000.7 2254.8 2540.6 2861.1 3179.0 3560.5 3973.7 5.43 8.49 13.58 21.39 33.95 42.44 54.32 67.91 84.88 106.95 135.81 152.79 169.76 190.14 213.90 241.07 271.62 305.58 339.53 380.27 424.41 1.7896 1.1453 0.7158 0.4545 0.2877 0.2302 0.1798 0.1439 0.1151 0.0916 0.0721 0.0641 0.0577 0.0516 0.0458 0.0407 0.0361 0.0321 0.0289 0.0258 0.0231 BS EN 50182:2001 Code Name Stranding&wire diameter Approx Overall diameter Total area Weight Breaking Load DC Resistance at 20 Current Rating mm mm mm2 Kg/km KN Ohm/km A Box Acacia Almond Cedar Deodar Fir Hazel Pine Holly Willow Oak Mulbery Ash Elm Poplar Sycamore Upas Yew Totara Rubus Sorbus Araucaria Redwood 7/1.85 7/2.08 7/2.34 7/2.54 7/2.77 7/2.95 7/3.30 7/3.61 7/3.91 7/4.04 7/4.65 19/3.18 19/3.48 19/3.76 37/2.87 37/3.23 37/3.53 37/4.06 37/4.14 61/3.50 61/3.71 61/4.14 61/4.56 5.55 6.24 7.02 7.62 8.31 8.85 9.90 10.80 11.70 12.10 13.95 15.90 17.40 18.80 20.10 22.60 24.70 28.40 29.42 31.50 33.40 37.30 41.00 18.8 23.9 30.1 35.5 42.2 47.8 59.9 71.6 84.1 89.7 118.9 150.9 180.7 211.0 239.4 303.2 362.1 479.0 498.1 586.9 659.4 821.1 996.2 51.4 64.9 82.2 96.8 115.2 130.6 163.4 195.6 229.5 245.0 324.5 414.3 496.1 579.2 659.4 835.2 997.5 1319.6 1372.1 1622.0 1822.5 2269.5 2753.2 5.55 7.02 8.88 10.46 12.44 14.11 17.66 21.14 24.79 26.47 35.07 44.52 53.31 62.24 70.61 89.40 106.82 141.31 146.93 173.13 194.53 242.24 293.88 1.7480 1.3828 1.0926 0.9273 0.7797 0.6875 0.5494 0.4591 0.3913 0.3665 0.2767 0.2192 0.1830 0.1568 0.1387 0.1095 0.0917 0.0693 0.0666 0.0567 0.0505 0.0406 0.0334 93 110 128 132 148 161 184 204 222 233 272 319 354 385 414 487 527 629 640 716 760 842 920
