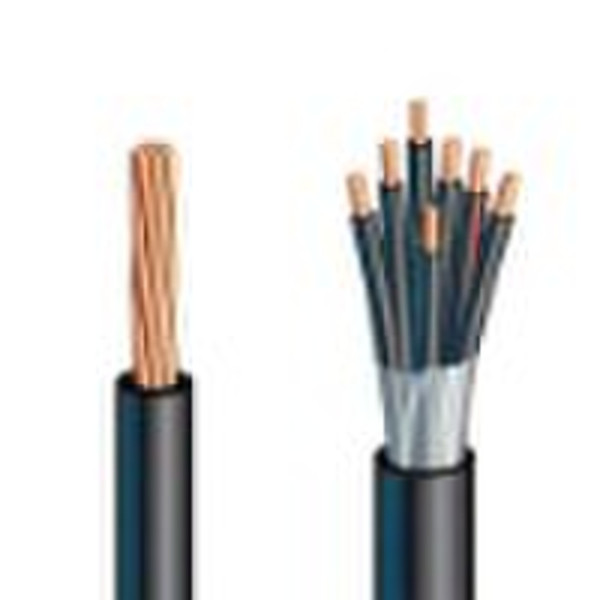

control cable

Control cable: Detailed Product Description 1. StandardThecontrol cablecan be produced according to the standard GB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables in accordance with other standards.2.Scope of ApplicationThecontrol cableare suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.3.Type& SpecificationTypeNameSection Area(mm2)No. of CoreApplication SiteKVVCopper Conductor,PVC Insulated and Sheathed Control Cable0.75 1.0 1.5 2.52-16Permanent installation indoors,in cable ditches or pipes4 62-14102-10KVVPCopper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable0.75 1.0 1.5 2.52-61Permanent installation indoors,in cable ditches or pipes where shielding is required4 62-14102-10KVVP2Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable0.75 1.0 1.5 2.54-10Permanent installation indoors,in cable ditches or pipes where shielding is required4 67-61104-10KVV22Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable0.75 1.0 1.5 2.57-61Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force4 64-14104-14KVVRCopper Conductor,PVC Insulated and Sheathed,Flexible Control Cable0.5-2.54-61Installation indoors where flexibility and movability are requiredKVVRPCopper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable0.5 0.75 1.04-61Installation indoors where flexibility shielding and movability are required1.5 2.54-48KYJVCopper Conductor,XLPE Insulated and PVC Sheathed Control Cable0.75 1.0 1.5 2.52-16Permanent installation indoors,in cable ditches or pipes4 62-14102-10KYJVPCopper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable0.75 1.0 1.5 2.52-61Permanent installation indoors,in cable ditches or pipes where shielding is required4 62-14102-10KYJV22Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable0.75 1.0 1.5 2.57-61Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force4 64-14104-10KYJVP2Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable0.75 1.0 1.5 2.57-61Permanent installation indoors,in cable ditches or pipes where shielding is required4 64-14104-10KYJVRCopper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable0.5-2.54-61Installation indoors where flexibility and movability are requiredKYJVRPCopper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable0.5 0.75 1.04-611.5 2.54-48Installation indoors where flexibility shielding and movability are required4.Service Conditions(1)The long-time working temperature of conductor of PVC insulated cable is 70oCThe long-time working temperature of conductor of XLPE insulated cable is 90oC(1) The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
