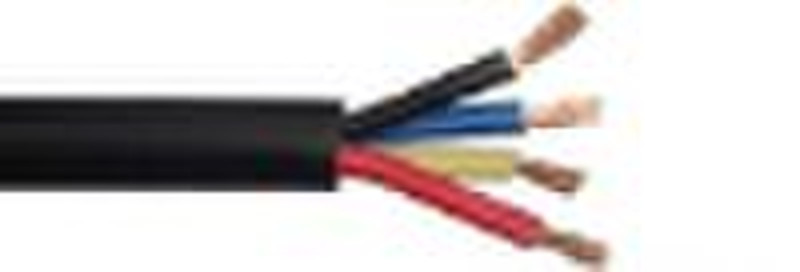

electric wire

PVC insulated electric wire: PVC insulated wires belong to the series of laying electric wires,which is mainly suitable for laying at the fixed places.It is widely used as connectors of drive,lighting,electric equipments,instrument and telecommunication equipments with rated voltage 450/750Vor below.Part of the plastic wires are used at the equipment with AC rated voltage 300/300V or below. 1.Standards The products adopt GB 5023.11997450/750V or below PVC insulated electric wires,JB 8734.15-1998450/750V or under PVC insulated cables,electric wires and flexible wiresand Q/ZEL 02-2002Piastic insulated electric wires and cables.GB 5023.17-1997 is identical to IEC227,and type are same as the stipulation of IEC,technical specification is just the same,and more we have extended the range of the type to fit for the requipment of the consumers. 2.Products TypeNameLaying place and requirementLong term working temperature227IEC01/05 BV BLVCopper conductor PVC insulated wiresFixed laid indoors,conduits etc.70Aluminum Conductor PVC insulated wires227IEC07 BV-90Heat resistant copper conductor PVC insulated wires at 90Mainly be laid at the places of high temperature environment and can be laid indoors,conduits.90BVRCopper conductor PVC insulated flexible wireBe for laying permanent place where flexible required70227IEC10 BWCopper conductor PVC insulated PVC sheathed round wiresFixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground.70BLWAluminum conductor PVC insulated PVC sheathed round wiresBWBCopper conductor PVC insulated PVC Sheathed flat wiresBLWBAluminum conductor PVC insulated sheathed flat wires227IEC02RV 227IEC06RVCopper conductor PVC insulated flexible connectorMainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required.70227IECC42 RVBCopper conductor PVC insualted flat flexible connectorRVSCopper conductor PVC insulated flexible twisting connector wire227IEC52 RW 227IEC53 RWCopper conductor PVC insulated PVC sheated round flexible connector(light and common type) Comprehensive Data of BV Wire Nominal sectional area mm2Conductor No/Dia. mmNominal Insulated thick mmMax overall Dia. mmCondcutor Resistance at 20Min insulated resistance at 70MΩ/kmWeight Kg/km0.51/0.800.62.436.00.0158.10.751./0.970.62.624.50.01210.611/1.130.62.818.10.01113.2 Comprehensive Data table of BV BLV Type PVC insualted wire Nominal sectional area mm2Conductor No/Dia. mmNominal Insulated thick mmMax overall Dia. mmCondcutor Resistance at 20Min insulated resistance at 70MΩ/kmWeight Kg/kmCuAlCuAl1.51/1.380.73.312.1-0.01119.2-1.57/0.520.73.512.1-0.01020.6-2.51/1.780.83.97.4111.80.01030.815.041/2.250.84.44.617.390.008545.521.061/2.760.84.93.084.910.007065.029.0107/1.351.07.01.833.080.0065110.052.0167/1.701.08.01.151.910.0050170.070.0257/2.141.210.00.7271.200.0050270.0110.0357/2.521.211.50.5240.8680.0040364.0150.05019/1.781.413.00.3870.6410.0045500.0200.07019/2.141.415.00.2680.4430.0035688.0269.09519/2.521.617.50.1930.3200.0035953.0360.012037/2.031.619.00.1530.2530.00321168.0449.015037/2.251.821.00.1240.2060.00321466.0551.018537/2.522.032.50.0990.1640.00321808.0668.0 Type BVR 450/750V copper conductor PVC insulated flexible wire Nominal sectional area mm2Conductor No/Dia. mmNominal Insulated thick mmMax overall Dia. mmCondcutor Resistance at 20Min insulated resistance at 70MΩ/kmWeight Kg/km2.59/0.410.84.27.410.01133.0419/0.520.84.84.610.00948.0619/0.640.85.63.080.008468.01049/0.521.07.61.830.0072115.01649/0.641.08.81.150.0062176.02598/0.581.211.00.7270.0058272.035133/0.581.212.50.5240.0052384.050133/0.681.416.50.3870.0051510.070189/0.681.416.50.2680.0045714.095259/0.681.619.50.1390.0035965.0120259/0.761.822.00.1530.00321210.0150259/0.851.825.00.1240.00321510.0
