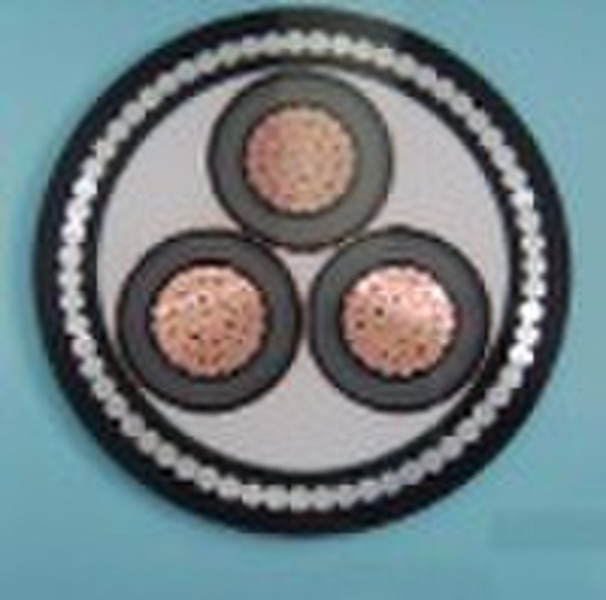

steel wire armoured power cable

Detailed Product Description Standard and Property for Using Thesteel wire armoured power cablecan be produced according to our factory specification which is equivalent to the standard IEC60502. The factory can also design and manufacture special XLPE cable according to the other standards required by the customers. They not only have excellent electric, mechanical properties, but also have powerful resistance against chemical corrosion, heataging and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90C. It is convenient for using, and they can be laid with no restriction of different elevation.The Rated Voltage, No of Core and Range of sectional AreaRate Voltage(kv) Sectional Area(mm2) No. Of Core 1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35 2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35 1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200 2 Core 1.5-185 25-185 3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400 4 Core 2.5-400 25-400 5 Core 2.5-400 25-400The Type and Main ApplicationType Name Main Application Cu Core Al Core YJV YJY YJLV YJLV XLPE insulated, PVC or PE Sheathed Power Cable For laying indoor, tunnel, channel and undergroud, Unable to bear external mechanical force, but bear the traction force during laid YJV22 YJV22 YJLV22 YJV22 XLPE Insulated, Steel Tape Armoured, PVC or PE Sheathed Power Cable For laying indoor, tunnel, channel and undergroud Able to bear external mechanical force, but unable to bear large pulling force YJV32 YJV32 YJLV32 YJLV32 XLPE Insulated, Fine Steel Wire Armoured, PVC or PE Sheathed Power Cable For laying in shaft with large difference of level. Able to bear external machanical force and maderate pulling force YJV42 YJV42 YJLV42 YJLV42 XLPE Insulated, Thick Steel Wire Armoured, PVC or PE Sheathed Power Cable Able to bear positive pressure and pulling forceNote: "ZR-"Include ABC three kinds of flame retardent cables, which are spectively indicated in "ZRA-" or "ZRB-" "ZRC-". For example: "ZRB-YJV""ZRA-YJV22".Main Technical Quota 1. DC resistance: Conductor resistance of finished cable at 20Cper kilometer is not more than the following values.Nominal Section Area(mm2) 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 Copper Core 12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221 Aluminum Core 18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.03672. Voltage Test and Partial Discharge TestRate Voltage Uo(kv) Item 0.6/1 1.8/3 3.6/6 6/6 6/10 8.7/10 8.7/15 12/20 18/20 18/30 21/35 26/35 Voltage Test Voltage 3.5 6.5 12.5 21 30.5 42 63 73.5 91 Test Time 5 5 5 5 5 5 5 5 5 Partial Discharge Test Test Voltage - - 6.2 10.4 15.1 20.8 31.1 36.3 45 Discharge Capacity - - 10 10 10 10 10 10 10
